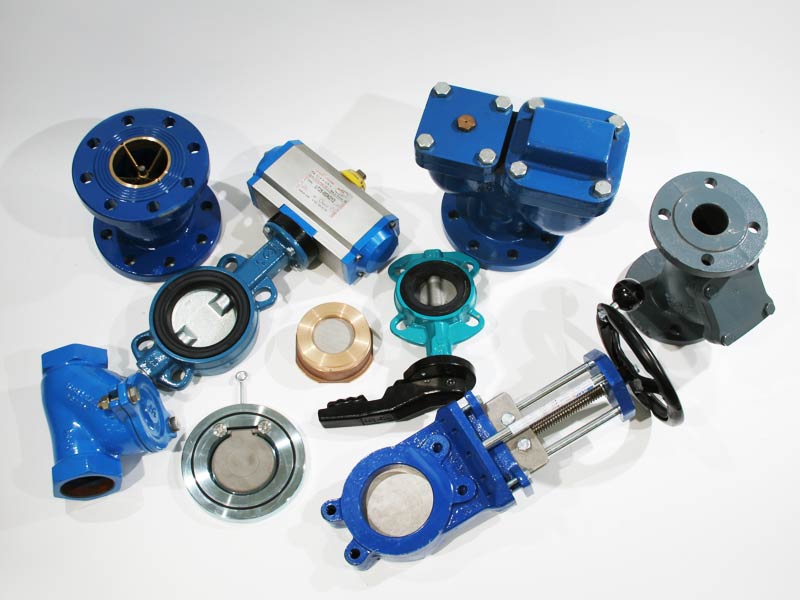

VALVES

A wide range of valves in carbon steel, stainless steel and special alloys, which can be used a great variety of industrial situations for the control of any type of flow, both gas and liquid in all Engineering plant sector: chemical plants, petrolchemicals, energy and electrical energy, gas and food, heating/air conditioning, cosmetics, detergents.

According to the type they are available as follows: SW, BW, THD and flanged.


BALL VALVES
  • Available sizes from our stock: from 1/2” to 10”
  • Superior sizes available upon request
  • Class rating: from S.150 to S.2500 and from PN 16 to PN 100
  • Type floating or trunion, top entry, side entry, fully welded, double ball in according to API 6A-6D, ISO 17292, ASME B16.34, ASME VII.

Moreover, we can supply valves for underwater and cryogenic uses.

BUTTERFLY VALVES
  • Available sizes from our stock: from 1”1/2 to 16”
  • Superior sizes available upon request
  • Class rating: from S.150 to S.2500 and from PN 16 to PN 100
  • For high pressure or standard and in the following models: wafer, lug or double flange; manual, actuated or gearbox.
CHECK VALVES
  • Available sizes from our stock: from 1/2” to 8”
  • Superior sizes available upon request
  • Class rating: from S.150 to S.2500 and from PN 16 to PN 100
  • Available in the following models: split disc, swing, piston, ball, needle, nozzle types, full or reduced bore.
CHOKE VALVES
  • Available sizes from our stock: from 1” to 4”
  • Superior sizes available upon request
  • Class rating: from S.150 to S.2500 and from PN 16 to PN 100
  • Available in the following models: floating or trunion, full or reduced ball, manual handwheel, gearbox or actuator operated; bolted in two or three parts or entirely welded.
DIAPHRAGM VALVES
  • Available sizes from our stock: from 1” to 4”
  • Superior sizes available upon request
  • Class rating: from S.150 to S.2500 and from PN 16 to PN 100
  • Available in the following models: floating or trunion, full or reduced ball, manual handwheel, gearbox or actuator operated; bolted in two or three parts or entirely welded.
VALVES DOUBLE BLOCK & BLEED
  • Available sizes from our stock: from 1” to 4”
  • Superior sizes available upon request
  • Class rating: from S.150 to S.2500 and from PN 16 to PN 100
  • Available in the following models: floating or trunion, full or reduced ball, manual handwheel, gearbox or actuator operated; bolted in two or three parts or entirely welded.
GATE VALVES
  • Available sizes from our stock: from 2” to 24”
  • Superior sizes available upon request
  • Class rating: from S.150 to S.2500 and from PN 16 to PN 100
  • In compliance with API 600 – BS 1414, API 6D, DIN 3352/3840
GLOBE VALVES
  • Available sizes from our stock: from 2” to 24”
  • Superior sizes available upon request
  • Class rating: from S.150 to S.2500 and from PN 16 to PN 100
  • Available in the following models: plug type globe, full or reduced ball, rising stem, outside screw and yoke, manual handwheel, chainwheel, gearbox or actuator operated, straight or angled.
NEEDLE VALVES
  • Available sizes from our stock: from 1/4” to 2”
  • Class rating: from S.800 to S.2500
  • Available in the following models: manual handwheel operated.
SAFETY VALVES
  • Available sizes from our stock: from 1” to 4”
  • Superior sizes available upon request
  • Class rating: from S.150 to S.2500
  • Available in the following models: automated set-pressure operations, manual over-ride options, special trim design options.

FOR ANY QUESTION OR TO REQUEST A FREE QUOTE PLEASE CONTACT US.
